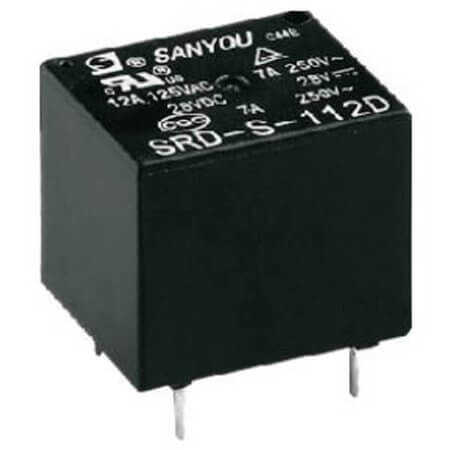

SRD-S-112DM-F-P RELAY 16A 12V 1FormA SANYOU

SRD-S-112DM-F-P RELAY 16A 12V 1FormA SANYOU Description

SRD-S-112DM-F-P RELAY 16A 12V 1FormA SANYOU SRD-S-112DM-F-P is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC - Max and coil resistance of 400 Ohms. Features a coil power of 360mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 19.60mm, width 15.40mm, and height 15.50mm.Manufactured by SANYOU and compliant with ROHS standards. Packaged as BOX for convenience.

SRD-S-112DM-F-P RELAY 16A 12V 1FormA SANYOU Technical Specifications

• Manufacturer: SANYOU
• RelayType: Relay Power Small
• Series: SRD
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 10A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 30mA
• ContactVoltage: 277VAC - Max
• CoilResistance: 400 Ohms
• CoilPower: 360mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 4 Pin
• Length: 19.60mm
• Width: 15.40mm
• Height: 15.50mm
• Rohs: ROHS
• Packaging: BOX

---

You can click for product datasheet.
