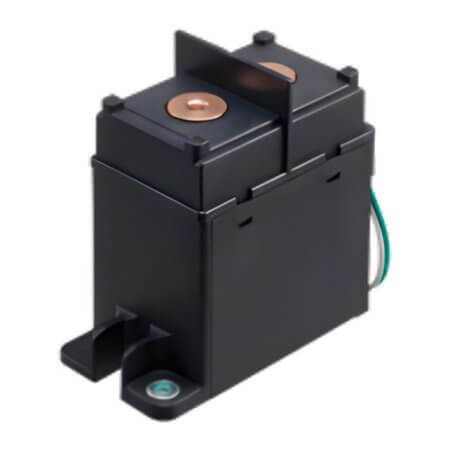

AEP17024 RELAY POWER 200 A 24VDC

AEP17024 RELAY POWER 200 A 24VDC Description

AEP17024 RELAY POWER 200 A 24VDC AEP17024 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 400VDC and coil resistance of nan. Features a coil power of 6W and operates within a temperature range of -40°C~+80°C.Compact design with dimensions: length 95.00mm, width 45.00mm, and height 86.40mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as BOX for convenience.

AEP17024 RELAY POWER 200 A 24VDC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power
• Series: AEP
• MountingType: Chassis Mount
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 200A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 250mA
• ContactVoltage: 400VDC
• CoilResistance:
• CoilPower: 6W
• OperatingTemperature: -40°C~+80°C
• NumberofPins: None
• Length: 95.00mm
• Width: 45.00mm
• Height: 86.40mm
• Rohs: ROHS
• Packaging: BOX

---

You can click for product datasheet.
