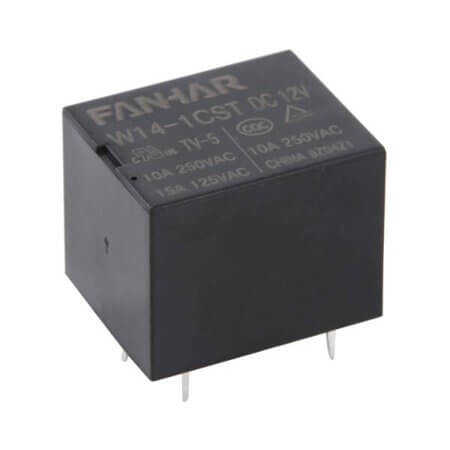

W14-1CST-DC12V RELAY POWER 10A 12VDC 1FormC PCB TYPE (JS1) 5PIN

W14-1CST-DC12V RELAY POWER 10A 12VDC 1FormC PCB TYPE (JS1) 5PIN Description

W14-1CST-DC12V RELAY POWER 10A 12VDC 1FormC PCB TYPE (JS1) 5PIN W14-1CST-DC12V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC/30VDC - Max and coil resistance of 400 Ohms. Features a coil power of 360mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 19.20mm, width 15.50mm, and height 15.00mm.Manufactured by FANHAR and compliant with ROHS standards. Packaged as TRAY for convenience.

W14-1CST-DC12V RELAY POWER 10A 12VDC 1FormC PCB TYPE (JS1) 5PIN Technical Specifications

• Manufacturer: FANHAR
• RelayType: Relay Power
• Series: W14
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 10A
• ContactCurrent(Max): 15A
• CoilVoltage: 12VDC
• CoilCurrent: 30mA
• ContactVoltage: 277VAC/30VDC - Max
• CoilResistance: 400 Ohms
• CoilPower: 360mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 5 Pin
• Length: 19.20mm
• Width: 15.50mm
• Height: 15.00mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
