ULN2803AFWG IC-2803 DRIV.(HAMMER,LAM,REL.) 8-CH.SMD SOP18 TOS

ULN2803AFWG IC-2803 DRIV.(HAMMER,LAM,REL.) 8-CH.SMD SOP18 TOS Description

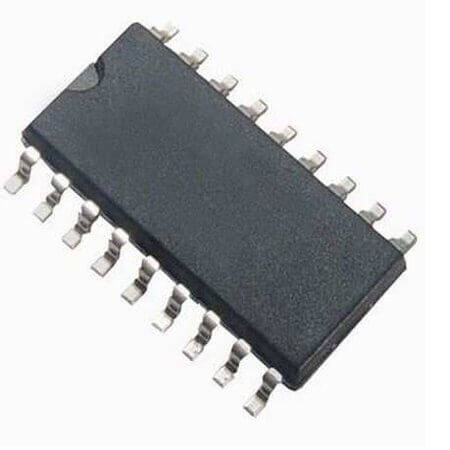

ULN2803AFWG IC-2803 DRIV.(HAMMER,LAM,REL.) 8-CH.SMD SOP18 TOS ULN2803AFWG is a high-performance transistor array, featuring 8 Channels Darlington Sink Driver. With a maximum collector-emitter voltage of 50V and a current rating of 500mA, it ensures reliable operation in demanding applications. The device supports 8/-/8 channels and offers a power dissipation of 920 mWatt to 1.31 Watt. Designed for SMT mounting, it is available in a SOP18 package. The operating temperature range is -40°C~+85°C, and it complies with ROHS standards, making it suitable for various electronic designs. Packaged in TAPE&REEL for ease of use.

ULN2803AFWG IC-2803 DRIV.(HAMMER,LAM,REL.) 8-CH.SMD SOP18 TOS Technical Specifications

• Manufacturer: TOSHIBA
• Features: 8 Channels Darlington Sink Driver
• MountingType: SMT
• Package/Case: SOP18
• CollectorEmitterVoltage(Max): 50V
• CollectorCurrent(Max): 500mA
• PowerDissipation: 920 mWatt to 1.31 Watt
• NumberofDrivers/Receivers/Channels: 8/-/8
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
