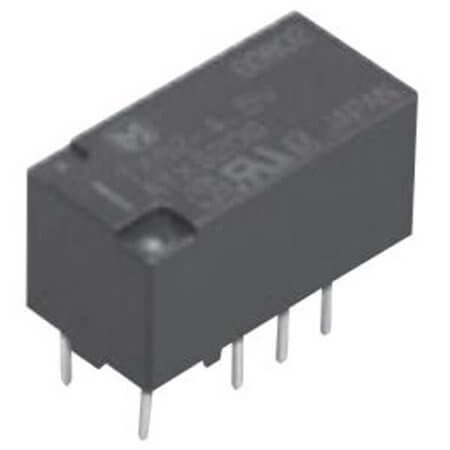

TXS2-24V RELAY 1A 24VDC 1P PURPOSE DPDT

TXS2-24V RELAY 1A 24VDC 1P PURPOSE DPDT Description

TXS2-24V RELAY 1A 24VDC 1P PURPOSE DPDT TXS2-24V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 30VDC and coil resistance of 8.30K Ohms. Features a coil power of 70mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 15.00mm, width 7.40mm, and height 8.20mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TUBE for convenience.

TXS2-24V RELAY 1A 24VDC 1P PURPOSE DPDT Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Telecom
• Series: TX-S
• MountingType: THT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 1A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 2.90mA
• ContactVoltage: 30VDC
• CoilResistance: 8.30K Ohms
• CoilPower: 70mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 8 Pin
• Length: 15.00mm
• Width: 7.40mm
• Height: 8.20mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
