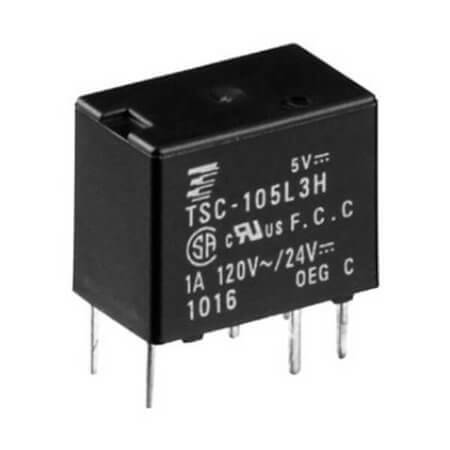

TSC-105L3H,000 RELAY TELECOM 1A 5VDC SPDT THT OEG

TSC-105L3H,000 RELAY TELECOM 1A 5VDC SPDT THT OEG Description

TSC-105L3H,000 RELAY TELECOM 1A 5VDC SPDT THT OEG TSC-105L3H,000 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 120VAC/30VDC - Max and coil resistance of 166 Ohms. Features a coil power of 150mW and operates within a temperature range of -30°C~+80°C.Compact design with dimensions: length 12.30mm, width 7.40mm, and height 10.00mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as TUBE for convenience.

TSC-105L3H,000 RELAY TELECOM 1A 5VDC SPDT THT OEG Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay Telecom
• Series: TSC
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 1A
• ContactCurrent(Max):
• CoilVoltage: 5VDC
• CoilCurrent: 30mA
• ContactVoltage: 120VAC/30VDC - Max
• CoilResistance: 166 Ohms
• CoilPower: 150mW
• OperatingTemperature: -30°C~+80°C
• NumberofPins: 6 Pin
• Length: 12.30mm
• Width: 7.40mm
• Height: 10.00mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
