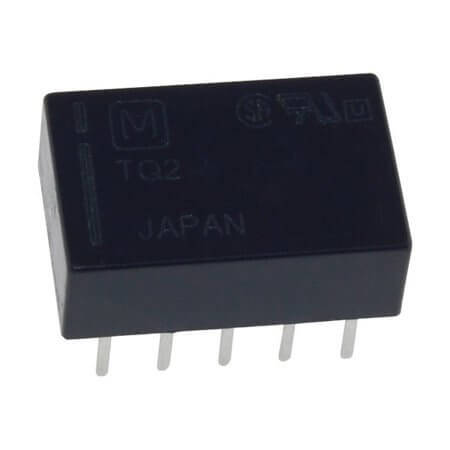

TQ2-L2-24V RELAY 1A 24VDC 2PNC TELECOM LATCHING TYPE

TQ2-L2-24V RELAY 1A 24VDC 2PNC TELECOM LATCHING TYPE Description

TQ2-L2-24V RELAY 1A 24VDC 2PNC TELECOM LATCHING TYPE TQ2-L2-24V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 125VAC/110VDC - Max and coil resistance of 1.92K Ohms. Features a coil power of 300mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 14.00mm, width 9.00mm, and height 5.00mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TUBE for convenience.

TQ2-L2-24V RELAY 1A 24VDC 2PNC TELECOM LATCHING TYPE Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Telecom
• Series: TQ
• MountingType: THT
• ContactForm: DPDT (2 Form C)
• CoilType: Latching, Dual Coil
• ContactCurrent(Nom): 1A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 12.50mA
• ContactVoltage: 125VAC/110VDC - Max
• CoilResistance: 1.92K Ohms
• CoilPower: 300mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 10 Pin
• Length: 14.00mm
• Width: 9.00mm
• Height: 5.00mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
