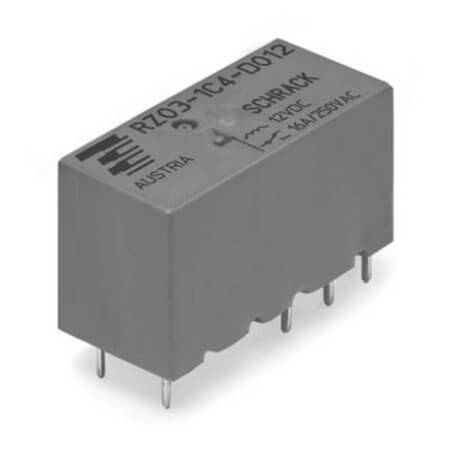

RZ03-1A4-D005 RELAY GEN PURPOSE SPST 16A 5V

RZ03-1A4-D005 RELAY GEN PURPOSE SPST 16A 5V Description

RZ03-1A4-D005 RELAY GEN PURPOSE SPST 16A 5V RZ03-1A4-D005 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC and coil resistance of 60 Ohms. Features a coil power of 420mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 29.00mm, width 12.70mm, and height 15.70mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as TUBE for convenience.

RZ03-1A4-D005 RELAY GEN PURPOSE SPST 16A 5V Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay General
• Series: RZ
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 16A
• ContactCurrent(Max):
• CoilVoltage: 5VDC
• CoilCurrent: 84mA
• ContactVoltage: 250VAC
• CoilResistance: 60 Ohms
• CoilPower: 420mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 6 Pin
• Length: 29.00mm
• Width: 12.70mm
• Height: 15.70mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
