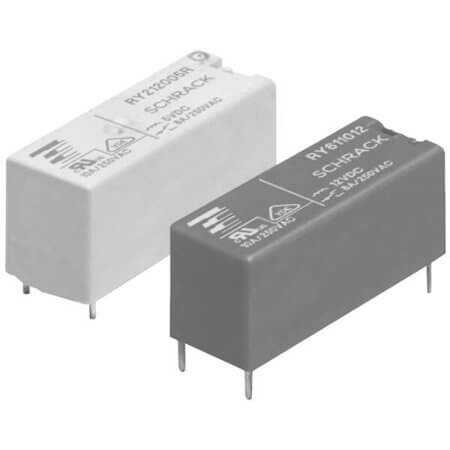

RY612012 RELAY POWER 8A 12VDC SPDT THT SCHRACK

RY612012 RELAY POWER 8A 12VDC SPDT THT SCHRACK Description

RY612012 RELAY POWER 8A 12VDC SPDT THT SCHRACK RY612012 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 400VAC - Max and coil resistance of 627 Ohms. Features a coil power of 230mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 28.50mm, width 10.10mm, and height 12.30mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as BULK for convenience.

RY612012 RELAY POWER 8A 12VDC SPDT THT SCHRACK Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay Power
• Series: RY2
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 8A
• ContactCurrent(Max): 10A
• CoilVoltage: 12VDC
• CoilCurrent: 19.20mA
• ContactVoltage: 400VAC - Max
• CoilResistance: 627 Ohms
• CoilPower: 230mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 5 Pin
• Length: 28.50mm
• Width: 10.10mm
• Height: 12.30mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
