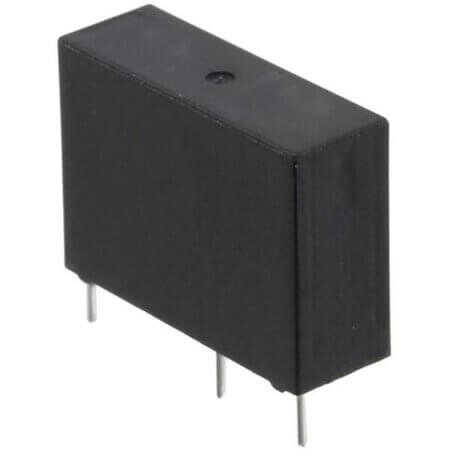

PCJ-112D3M,301 RELAY 3A 12VDC SPST THT OEG

PCJ-112D3M,301 RELAY 3A 12VDC SPST THT OEG Description

PCJ-112D3M,301 RELAY 3A 12VDC SPST THT OEG PCJ-112D3M,301 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC - Max and coil resistance of 720 Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 20.40mm, width 7.00mm, and height 15.00mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as BULK for convenience.

PCJ-112D3M,301 RELAY 3A 12VDC SPST THT OEG Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay General
• Series: PCJ
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 3A
• ContactCurrent(Max): 5A
• CoilVoltage: 12VDC
• CoilCurrent: 16.70mA
• ContactVoltage: 250VAC/30VDC - Max
• CoilResistance: 720 Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 4 Pin
• Length: 20.40mm
• Width: 7.00mm
• Height: 15.00mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
