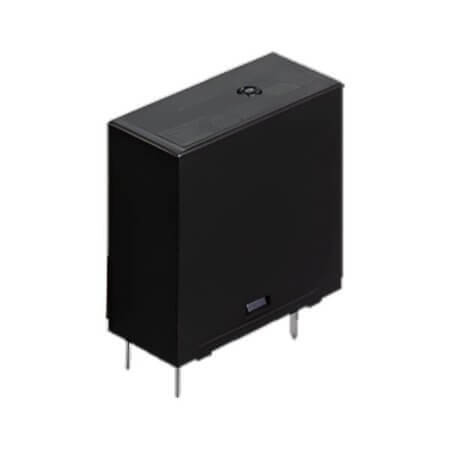

LKT1AF-24V RELAY GEN PURPOSE SPST 5A 24V

LKT1AF-24V RELAY GEN PURPOSE SPST 5A 24V Description

LKT1AF-24V RELAY GEN PURPOSE SPST 5A 24V LKT1AF-24V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC - Max and coil resistance of 2.30K Ohms. Features a coil power of 250mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 24.00mm, width 11.00mm, and height 25.00mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

LKT1AF-24V RELAY GEN PURPOSE SPST 5A 24V Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power
• Series: LK-T
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 5A
• ContactCurrent(Max): 8A
• CoilVoltage: 24VDC
• CoilCurrent: 10.40mA
• ContactVoltage: 277VAC - Max
• CoilResistance: 2.30K Ohms
• CoilPower: 250mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 4 Pin
• Length: 24.00mm
• Width: 11.00mm
• Height: 25.00mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
