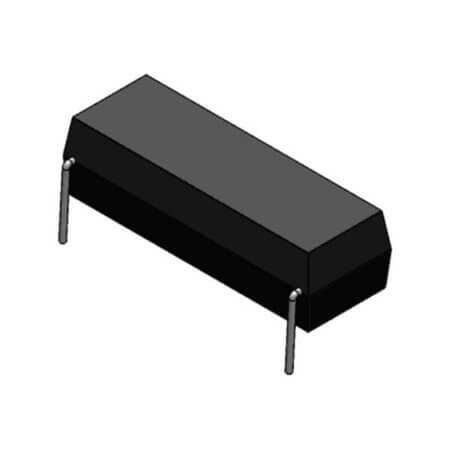

KT05-1A-40L-THT RELAY REED 1A 5V SPST-NO (1 Form A)

KT05-1A-40L-THT RELAY REED 1A 5V SPST-NO (1 Form A) Description

KT05-1A-40L-THT RELAY REED 1A 5V SPST-NO (1 Form A) KT05-1A-40L-THT is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 1000VAC/1000VDC and coil resistance of 80 Ohms. Features a coil power of 313mW and operates within a temperature range of -40°C~+100°C.Compact design with dimensions: length 30.20mm, width 10.20mm, and height 8.70mm.Manufactured by STANDEX-MEDER and compliant with ROHS standards. Packaged as TUBE for convenience.

KT05-1A-40L-THT RELAY REED 1A 5V SPST-NO (1 Form A) Technical Specifications

• Manufacturer: STANDEX-MEDER
• RelayType: Relay Reed
• Series: KT
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 1A
• ContactCurrent(Max):
• CoilVoltage: 5VDC
• CoilCurrent: 63mA
• ContactVoltage: 1000VAC/1000VDC
• CoilResistance: 80 Ohms
• CoilPower: 313mW
• OperatingTemperature: -40°C~+100°C
• NumberofPins: 4 Pin
• Length: 30.20mm
• Width: 10.20mm
• Height: 8.70mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
