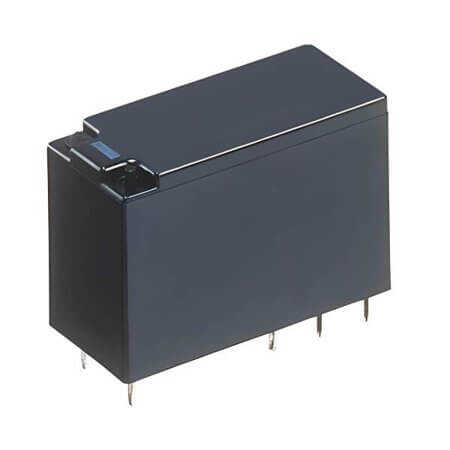

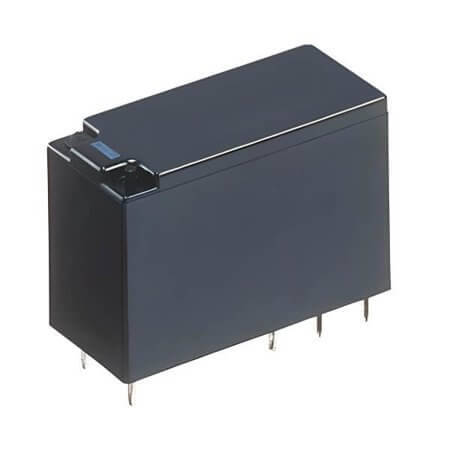

JW2SN-DC6V RELAY POWER 5A 6VDC 2P PANASONIC

JW2SN-DC6V RELAY POWER 5A 6VDC 2P PANASONIC Description

JW2SN-DC6V RELAY POWER 5A 6VDC 2P PANASONIC JW2SN-DC6V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 68 Ohms. Features a coil power of 530mW and operates within a temperature range of -40°C~+60°C.Compact design with dimensions: length 28.60mm, width 12.80mm, and height 20.00mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

JW2SN-DC6V RELAY POWER 5A 6VDC 2P PANASONIC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power
• Series: JW
• MountingType: THT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 5A
• ContactCurrent(Max):
• CoilVoltage: 6VDC
• CoilCurrent: 88mA
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 68 Ohms
• CoilPower: 530mW
• OperatingTemperature: -40°C~+60°C
• NumberofPins: 8 Pin
• Length: 28.60mm
• Width: 12.80mm
• Height: 20.00mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
