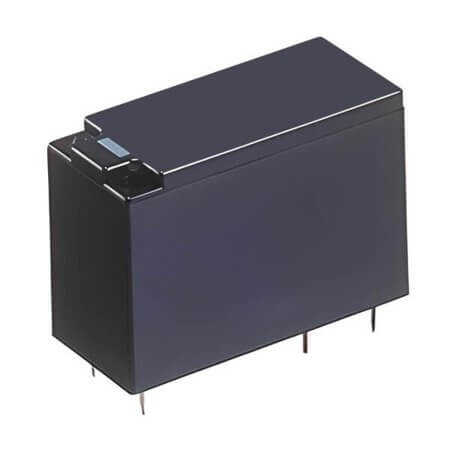

JW2ASN-DC24V RELAY POWER 5A 24VDC 2a PANASONIC

JW2ASN-DC24V RELAY POWER 5A 24VDC 2a PANASONIC Description

JW2ASN-DC24V RELAY POWER 5A 24VDC 2a PANASONIC JW2ASN-DC24V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 1.10K Ohms. Features a coil power of 530mW and operates within a temperature range of -40°C~+60°C.Compact design with dimensions: length 28.60mm, width 12.80mm, and height 20.00mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

JW2ASN-DC24V RELAY POWER 5A 24VDC 2a PANASONIC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power
• Series: JW
• MountingType: THT
• ContactForm: DPST-NO (2 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 5A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 22mA
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 1.10K Ohms
• CoilPower: 530mW
• OperatingTemperature: -40°C~+60°C
• NumberofPins: 6 Pin
• Length: 28.60mm
• Width: 12.80mm
• Height: 20.00mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
