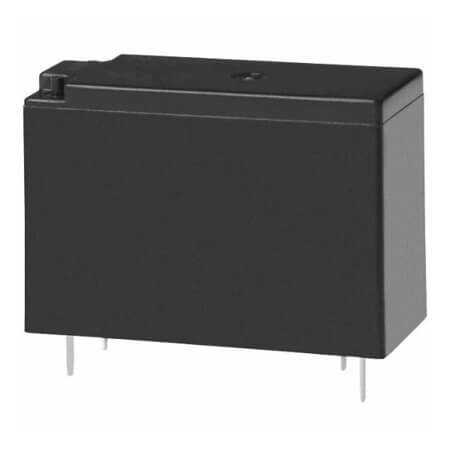

JW1AFSN-DC12V-F RELAY POWER 10A 12VDC SPST-NO

JW1AFSN-DC12V-F RELAY POWER 10A 12VDC SPST-NO Description

JW1AFSN-DC12V-F RELAY POWER 10A 12VDC SPST-NO JW1AFSN-DC12V-F is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 270 Ohms. Features a coil power of 530mW and operates within a temperature range of -40°C~+60°C.Compact design with dimensions: length 28.60mm, width 12.80mm, and height 20.00mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

JW1AFSN-DC12V-F RELAY POWER 10A 12VDC SPST-NO Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power
• Series: JW
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 10A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 44mA
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 270 Ohms
• CoilPower: 530mW
• OperatingTemperature: -40°C~+60°C
• NumberofPins: 4 Pin
• Length: 28.60mm
• Width: 12.80mm
• Height: 20.00mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
