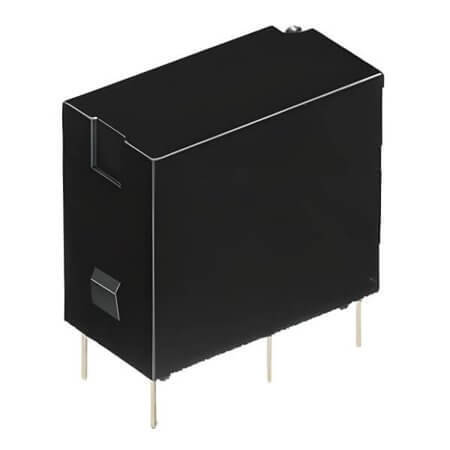

JQ1-9V-F RELAY POWER 5A 9VDC 1PNC PANASONIC

JQ1-9V-F RELAY POWER 5A 9VDC 1PNC PANASONIC Description

JQ1-9V-F RELAY POWER 5A 9VDC 1PNC PANASONIC JQ1-9V-F is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/110VDC - Max and coil resistance of 202.50 Ohms. Features a coil power of 400mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 20.00mm, width 10.00mm, and height 15.60mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

JQ1-9V-F RELAY POWER 5A 9VDC 1PNC PANASONIC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power Small
• Series: JQ
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 2A
• ContactCurrent(Max): 5A
• CoilVoltage: 9VDC
• CoilCurrent: 44.40mA
• ContactVoltage: 250VAC/110VDC - Max
• CoilResistance: 202.50 Ohms
• CoilPower: 400mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 5 Pin
• Length: 20.00mm
• Width: 10.00mm
• Height: 15.60mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
