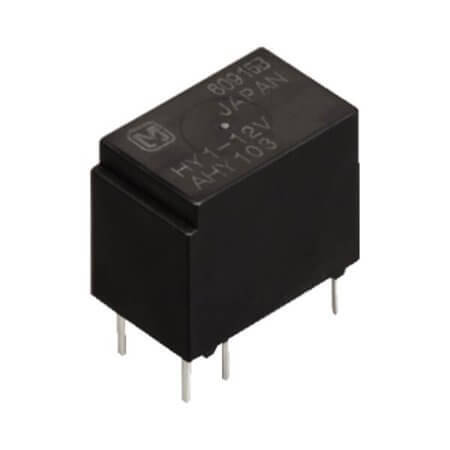

HY1Z-12V RELAY 1A 12VDC 1PNC 200mV TELECOM TYPE PANASONIC

HY1Z-12V RELAY 1A 12VDC 1PNC 200mV TELECOM TYPE PANASONIC Description

HY1Z-12V RELAY 1A 12VDC 1PNC 200mV TELECOM TYPE PANASONIC HY1Z-12V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 60VDC - Max and coil resistance of 720 Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 12.00mm, width 7.40mm, and height 10.10mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TUBE for convenience.

HY1Z-12V RELAY 1A 12VDC 1PNC 200mV TELECOM TYPE PANASONIC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Telecom
• Series: HY
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 1A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 16.70mA
• ContactVoltage: 60VDC - Max
• CoilResistance: 720 Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 6 Pin
• Length: 12.00mm
• Width: 7.40mm
• Height: 10.10mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
