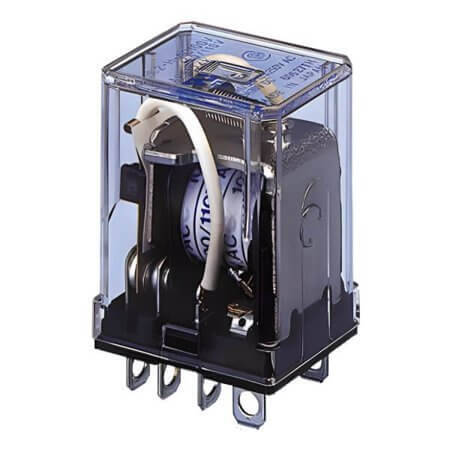

HL2-H-DC24V-F RELAY GEN PURPOSE DPDT 10A 24V

HL2-H-DC24V-F RELAY GEN PURPOSE DPDT 10A 24V Description

HL2-H-DC24V-F RELAY GEN PURPOSE DPDT 10A 24V HL2-H-DC24V-F is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 650 Ohms. Features a coil power of 900mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 27.20mm, width 20.80mm, and height 35.40mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as BULK for convenience.

HL2-H-DC24V-F RELAY GEN PURPOSE DPDT 10A 24V Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power
• Series: HL
• MountingType: Socket
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 10A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 37mA
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 650 Ohms
• CoilPower: 900mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 8 Pin
• Length: 27.20mm
• Width: 20.80mm
• Height: 35.40mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
