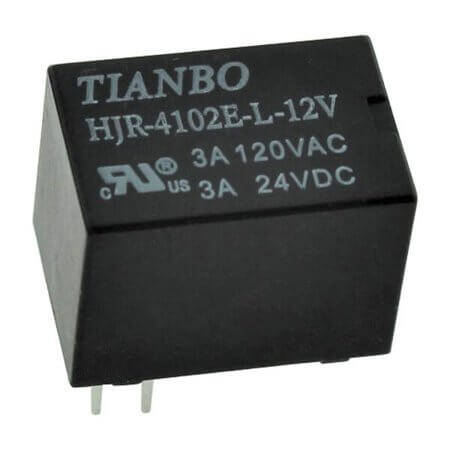

HJR-4102E-L-12VDC-S-Z RELAY POWER 3A 12VDC 1FormC

HJR-4102E-L-12VDC-S-Z RELAY POWER 3A 12VDC 1FormC Description

HJR-4102E-L-12VDC-S-Z RELAY POWER 3A 12VDC 1FormC HJR-4102E-L-12VDC-S-Z is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 120VAC/24VDC and coil resistance of 720 Ohms. Features a coil power of 200mW and operates within a temperature range of -30°C~+85°C.Compact design with dimensions: length 15.50mm, width 10.40mm, and height 11.70mm.Manufactured by TIANBO and compliant with ROHS standards. Packaged as TUBE for convenience.

HJR-4102E-L-12VDC-S-Z RELAY POWER 3A 12VDC 1FormC Technical Specifications

• Manufacturer: TIANBO
• RelayType: Relay Power
• Series: HJR4102E
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 1A
• ContactCurrent(Max): 3A
• CoilVoltage: 12VDC
• CoilCurrent: 12.70mA
• ContactVoltage: 120VAC/24VDC
• CoilResistance: 720 Ohms
• CoilPower: 200mW
• OperatingTemperature: -30°C~+85°C
• NumberofPins: 5 Pin
• Length: 15.50mm
• Width: 10.40mm
• Height: 11.70mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
