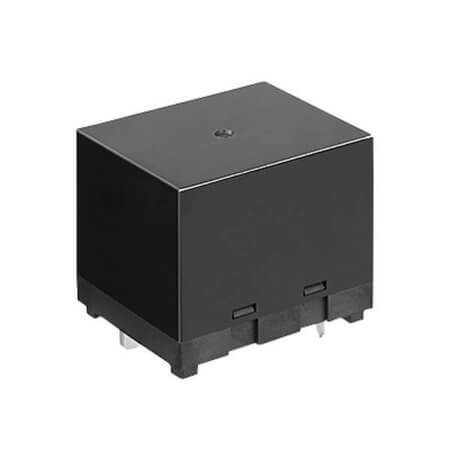

HE1AN-W-DC24V-Y7 RELAY POWER SPST 120A 24VDC

HE1AN-W-DC24V-Y7 RELAY POWER SPST 120A 24VDC Description

HE1AN-W-DC24V-Y7 RELAY POWER SPST 120A 24VDC HE1AN-W-DC24V-Y7 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 480VAC and coil resistance of 230 Ohms. Features a coil power of 2.50W and operates within a temperature range of nan.Compact design with dimensions: length 50.00mm, width 40.00mm, and height 43.00mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

HE1AN-W-DC24V-Y7 RELAY POWER SPST 120A 24VDC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power
• Series: HE
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 120A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 104mA
• ContactVoltage: 480VAC
• CoilResistance: 230 Ohms
• CoilPower: 2.50W
• OperatingTemperature:
• NumberofPins: 4 Pin
• Length: 50.00mm
• Width: 40.00mm
• Height: 43.00mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
