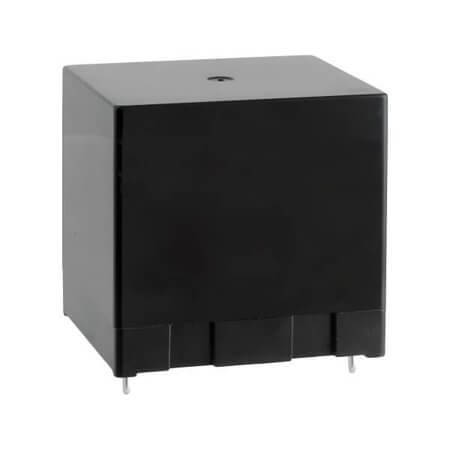

HE1AN-P-DC12V-Y5 RELAY 48A 12VDC 1FormA

HE1AN-P-DC12V-Y5 RELAY 48A 12VDC 1FormA Description

HE1AN-P-DC12V-Y5 RELAY 48A 12VDC 1FormA HE1AN-P-DC12V-Y5 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC and coil resistance of 75 Ohms. Features a coil power of 1.92W and operates within a temperature range of -50°C~+55°C.Compact design with dimensions: length 38.00mm, width 33.00mm, and height 36.30mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

HE1AN-P-DC12V-Y5 RELAY 48A 12VDC 1FormA Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power
• Series: HE
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 48A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 160mA
• ContactVoltage: 277VAC
• CoilResistance: 75 Ohms
• CoilPower: 1.92W
• OperatingTemperature: -50°C~+55°C
• NumberofPins: 4 Pin
• Length: 38.00mm
• Width: 33.00mm
• Height: 36.30mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
