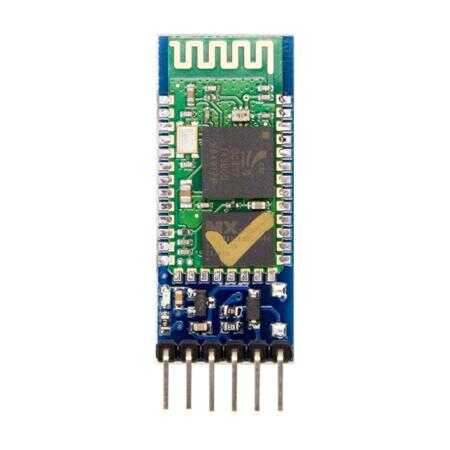

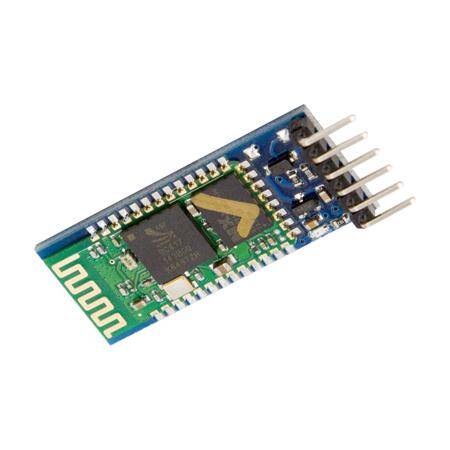

HC-05 6 Pin Bluetooth Module Without Button

HC-05 6 Pin Bluetooth Module Description

The HC-05 6 Pin Bluetooth Module is a versatile wireless communication module supporting both Master and Slave modes. Designed without a button, this module is configured via AT commands and provides a reliable solution for embedding Bluetooth functionality into IoT, robotics, and other wireless projects. Its six-pin interface offers flexibility and easy integration with various microcontrollers.

HC-05 6 Pin Bluetooth Module Features

• Master and Slave Modes: Fully configurable for both roles using AT commands.
• 6 Pin Interface: Includes TX, RX, VCC, GND, EN, and STATE pins for enhanced functionality.
• Wide Compatibility: Works with Arduino, Raspberry Pi, STM32, and other microcontrollers.
• Stable Connectivity: Provides reliable wireless communication over Bluetooth.
• Compact and Durable Design: Suitable for space-constrained and rugged applications.
• Low Power Consumption: Optimized for energy-efficient operation.

HC-05 6 Pin Bluetooth Module Specifications

• Bluetooth Version: Bluetooth 2.0 + EDR
• Operating Voltage: 3.3V - 6V
• Communication Interface: UART (default baud rate: 9600)
• Operating Range: Up to 10 meters (in open space)

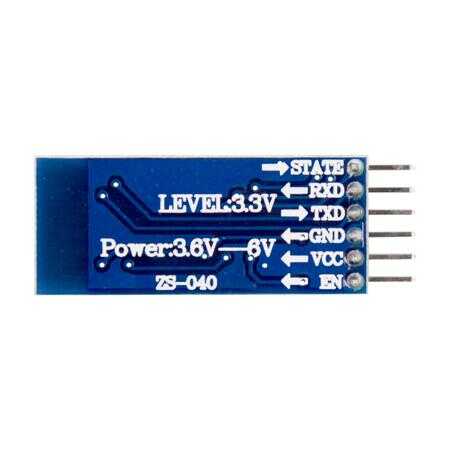

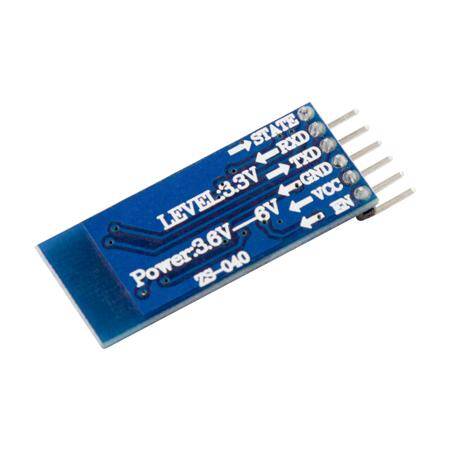

• Pin Configuration: TX, RX, VCC, GND, EN (enable), STATE (connection status)
• Modes: Master and Slave
• Dimensions: Compact and lightweight

HC-05 6 Pin Bluetooth Module Applications

• Wireless Communication: Facilitates data transfer between microcontrollers and Bluetooth-enabled devices.
• IoT Projects: Adds wireless connectivity to smart devices and home automation systems.
• Robotics: Enables remote control and telemetry in robotic systems.
• Embedded Systems: Integrates Bluetooth functionality into custom electronics.
• Educational Projects: Perfect for learning and prototyping wireless communication systems.
