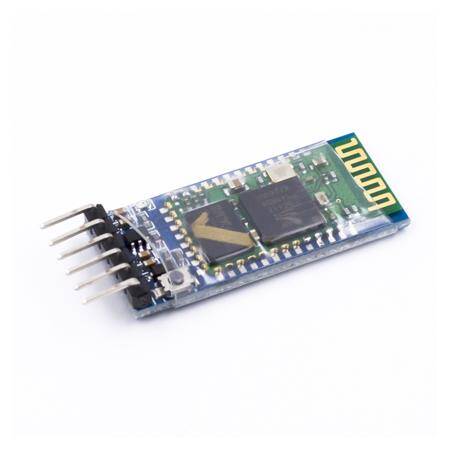

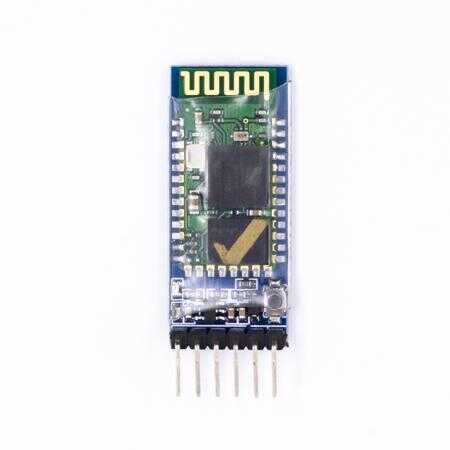

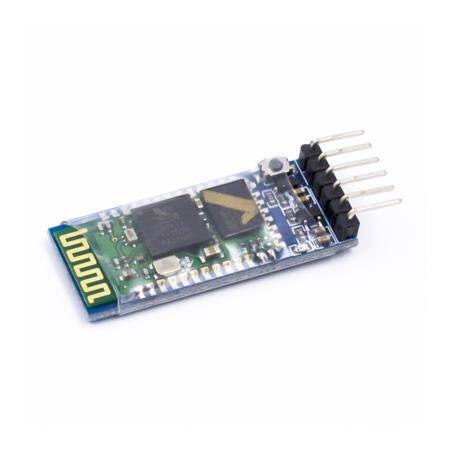

HC-05 6 Pin Bluetooth Module With Button

HC-05 6 Pin Bluetooth Module Description

The HC-05 6 Pin Bluetooth Module is a highly versatile Bluetooth communication module that supports both Master and Slave modes. This version includes a button for easy switching to AT command mode, simplifying the configuration process. With its six-pin interface, the module is ideal for integrating wireless communication into IoT systems, robotics, and other embedded projects. It offers stable connectivity and wide compatibility with microcontrollers like Arduino, Raspberry Pi, and STM32.

HC-05 6 Pin Bluetooth Module Features

• Master and Slave Modes: Configurable for both roles using AT commands.
• Integrated Button: Easily switch to AT command mode for quick configuration.

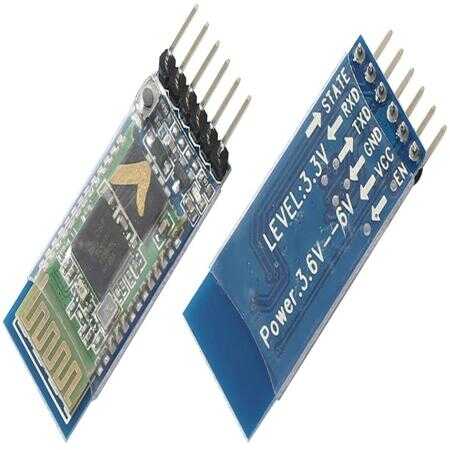

• 6 Pin Interface: Includes TX, RX, VCC, GND, EN (enable), and STATE (connection status) pins.
• Stable Connectivity: Reliable Bluetooth communication with a range of up to 10 meters.
• Compact Design: Lightweight and easy to integrate into projects.
• Energy Efficient: Low power consumption, suitable for battery-powered devices.

HC-05 6 Pin Bluetooth Module Specifications

• Bluetooth Version: Bluetooth 2.0 + EDR
• Operating Voltage: 3.3V - 6V
• Communication Interface: UART (default baud rate: 9600)
• Operating Range: Up to 10 meters (in open space)

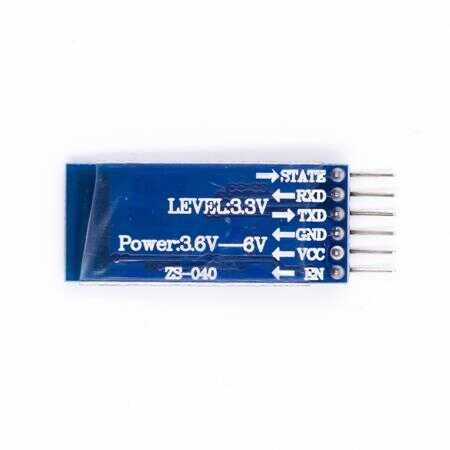

• Pin Configuration: TX, RX, VCC, GND, EN (enable), STATE (connection status)
• Modes: Master and Slave
• Button Function: Switch to AT command mode for configuration
• Dimensions: Compact and lightweight

HC-05 6 Pin Bluetooth Module Applications

• Wireless Communication: Enables data transfer between microcontrollers and Bluetooth-enabled devices.
• IoT Projects: Adds Bluetooth functionality to smart devices and automation systems.
• Robotics: Facilitates remote control and telemetry in robotic applications.
• Embedded Systems: Integrates Bluetooth communication into custom electronics projects.
• Educational Projects: Ideal for learning and prototyping Bluetooth-enabled systems.
