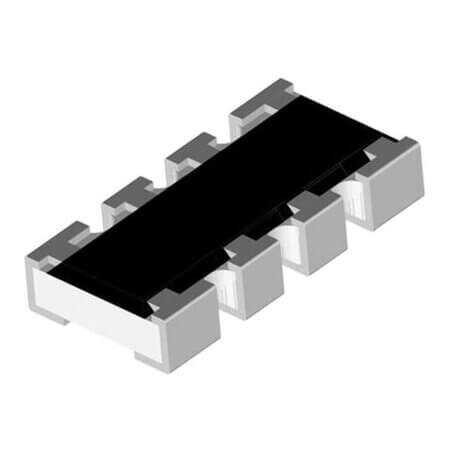

EXB-28V101JX RES.ARRAY (1005) 0402x4 100 Ohms 5% 1/16W (0804)

EXB-28V101JX RES.ARRAY (1005) 0402x4 100 Ohms 5% 1/16W (0804) Description

EXB-28V101JX RES.ARRAY (1005) 0402x4 100 Ohms 5% 1/16W (0804) EXB-28V101JX is a high-quality network resistor that featuring a resistance value of 100 Ohms with a tolerance of ±5%. Designed for Automotive(AEC-Q200) use, it operates with a working voltage of 50V. Dimensions: length 2.00mm, width 1.00mm, height 0.45mm.Temperature coefficient: ±200PPM/°C. Compliant with ROHS standards and packaged as TAPE&REEL.

EXB-28V101JX RES.ARRAY (1005) 0402x4 100 Ohms 5% 1/16W (0804) Technical Specifications

• Manufacturer: PANASONIC COMP.
• MountingType: SMT
• Package/Case: 0804x4
• PinNo: 8 Pins
• CircuitType: Isolated
• Composition: Convex Terminal
• Power: 1/16W
• ResistanceValue: 100 Ohms
• Tolerance: ±5%
• Applications: Automotive(AEC-Q200)
• WorkingVoltage: 50V
• Length: 2.00mm
• Width: 1.00mm
• Height: 0.45mm
• TemperatureCoefficient: ±200PPM/°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
