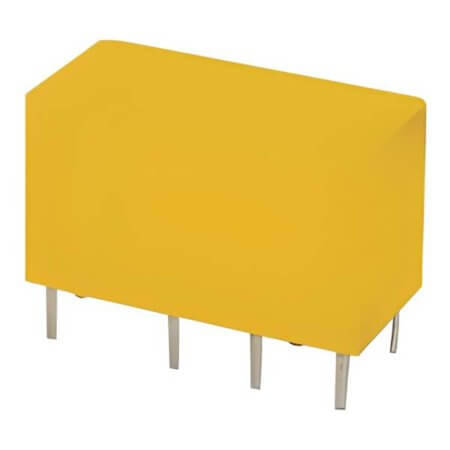

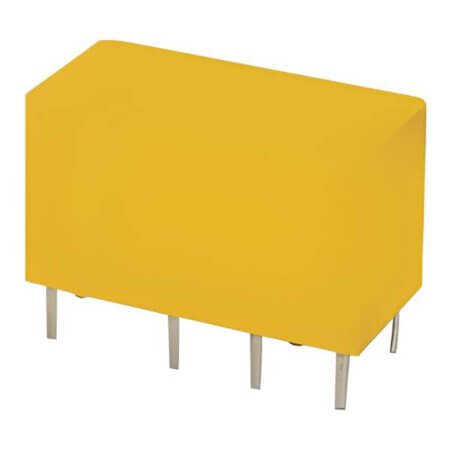

DSY2Y-S-212L RELAY 2A 12VDC 2PNC TELECOM (DS2) SANYOU

DSY2Y-S-212L RELAY 2A 12VDC 2PNC TELECOM (DS2) SANYOU Description

DSY2Y-S-212L RELAY 2A 12VDC 2PNC TELECOM (DS2) SANYOU DSY2Y-S-212L is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/220VDC - Max and coil resistance of 720 Ohms. Features a coil power of 200mW and operates within a temperature range of -30°C~+75°C.Compact design with dimensions: length 20.20mm, width 10.00mm, and height 11.80mm.Manufactured by SANYOU and compliant with ROHS standards. Packaged as TUBE for convenience.

DSY2Y-S-212L RELAY 2A 12VDC 2PNC TELECOM (DS2) SANYOU Technical Specifications

• Manufacturer: SANYOU
• RelayType: Relay Telecom
• Series: DSY2Y
• MountingType: THT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 2A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 30mA
• ContactVoltage: 250VAC/220VDC - Max
• CoilResistance: 720 Ohms
• CoilPower: 200mW
• OperatingTemperature: -30°C~+75°C
• NumberofPins: 8 Pin
• Length: 20.20mm
• Width: 10.00mm
• Height: 11.80mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
