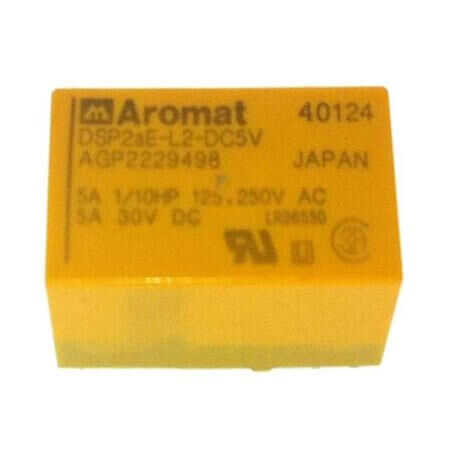

DSP2AE-L2-DC5V RELAY 5A 5VDC 2PNC TELECOM TYPE AROMAT

DSP2AE-L2-DC5V RELAY 5A 5VDC 2PNC TELECOM TYPE AROMAT Description

DSP2AE-L2-DC5V RELAY 5A 5VDC 2PNC TELECOM TYPE AROMAT DSP2AE-L2-DC5V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 83 Ohms. Features a coil power of 300mW and operates within a temperature range of -40°C~+60°C.Compact design with dimensions: length 20.20mm, width 11.00mm, and height 10.50mm.Manufactured by MATSUSHITA and compliant with nan standards. Packaged as TRAY for convenience.

DSP2AE-L2-DC5V RELAY 5A 5VDC 2PNC TELECOM TYPE AROMAT Technical Specifications

• Manufacturer: MATSUSHITA
• RelayType: Relay Power Polarized
• Series:
• MountingType: THT
• ContactForm: DPST-NO (2 Form A)
• CoilType: Latching, Dual Coil
• ContactCurrent(Nom): 5A
• ContactCurrent(Max):
• CoilVoltage: 5VDC
• CoilCurrent: 60mA
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 83 Ohms
• CoilPower: 300mW
• OperatingTemperature: -40°C~+60°C
• NumberofPins: 8 Pin
• Length: 20.20mm
• Width: 11.00mm
• Height: 10.50mm
• Rohs:
• Packaging: TRAY

---

You can click for product datasheet.
