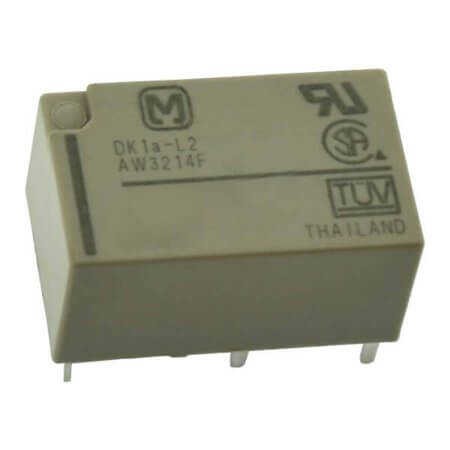

DK1A-L2-3V-F RELAY POWER MINIATURE 10A 3VDC 1P PANASONIC

DK1A-L2-3V-F RELAY POWER MINIATURE 10A 3VDC 1P PANASONIC Description

DK1A-L2-3V-F RELAY POWER MINIATURE 10A 3VDC 1P PANASONIC DK1A-L2-3V-F is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 45 Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+65°C.Compact design with dimensions: length 20.00mm, width 12.50mm, and height 9.70mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

DK1A-L2-3V-F RELAY POWER MINIATURE 10A 3VDC 1P PANASONIC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power Polarized
• Series: DK
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Latching, Dual Coil
• ContactCurrent(Nom): 10A
• ContactCurrent(Max):
• CoilVoltage: 3VDC
• CoilCurrent: 66.70mA
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 45 Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+65°C
• NumberofPins: 5 Pin
• Length: 20.00mm
• Width: 12.50mm
• Height: 9.70mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
