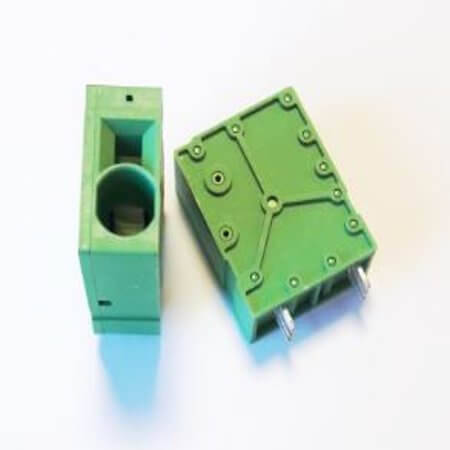

DG271V-10.0-01P-14-00AH TERM.BLK.10.0MM 1P PCB SPRING TYPE GREEN

DG271V-10.0-01P-14-00AH TERM.BLK.10.0MM 1P PCB SPRING TYPE GREEN Description

DG271V-10.0-01P-14-00AH TERM.BLK.10.0MM 1P PCB SPRING TYPE GREEN DG271V-10.0-01P-14-00AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 20-4 AWG (0.2-16.0 mm²). Constructed using PA66+UL94V-0 housing, Stainless Steel clamps, and Copper Alloy+Sn Plated pins for durability. Manufactured by DEGSON with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG271V-10.0-01P-14-00AH TERM.BLK.10.0MM 1P PCB SPRING TYPE GREEN Technical Specifications

• Manufacturer: DEGSON
• Series: DG271V
• Gender: None
• WireTermination: None
• NumberofPins: 1 Pin
• NumberOfLevel: 1
• PositionsOfLevel: 1
• Pitch: 10.00mm
• MountingType: THT V/T
• WireEntry: 180°
• ProfileHeight: 31.30mm
• Current: 8.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 20-4 AWG
• WireGauge(mm²): 0.2-16.0 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: Stainless Steel
• PinMaterial: Copper Alloy+Sn Plated
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
