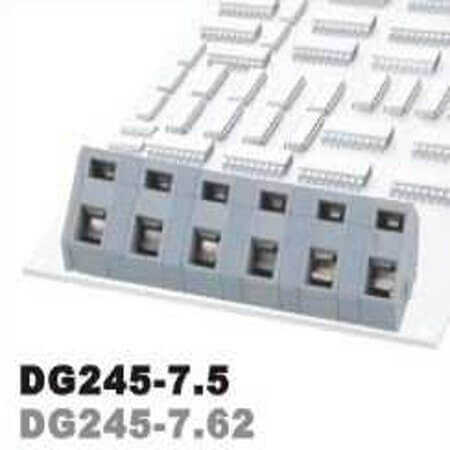

DG245-7.5-03P-11-00SH TERM.BLK.7.5MM 3P PCB TYPE

DG245-7.5-03P-11-00SH TERM.BLK.7.5MM 3P PCB TYPE Description

DG245-7.5-03P-11-00SH TERM.BLK.7.5MM 3P PCB TYPE DG245-7.5-03P-11-00SH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 28-12 AWG (2.5 mm²). Constructed using PA66+UL94V-0 housing, Stainless Steel clamps, and Phosphor Bronze+Tin Plated pins for durability. Manufactured by DEGSON/GAOSONG with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

DG245-7.5-03P-11-00SH TERM.BLK.7.5MM 3P PCB TYPE Technical Specifications

• Manufacturer: DEGSON/GAOSONG
• Series: DG245
• Gender: None
• WireTermination: Screwless
• NumberofPins: 3 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 3
• Pitch: 7.50mm
• MountingType: THT V/T
• WireEntry: 45°
• ProfileHeight: 12.80mm
• Current: 15.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 28-12 AWG
• WireGauge(mm²): 2.5 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: Stainless Steel
• PinMaterial: Phosphor Bronze+Tin Plated
• Color: Gray
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
