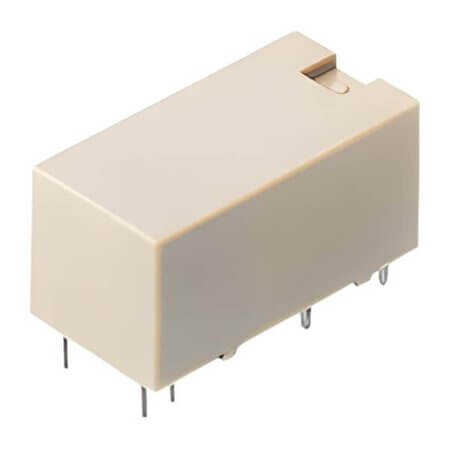

DE2A-L2-12V RELAY 8A 12V 2PNC

DE2A-L2-12V RELAY 8A 12V 2PNC Description

DE2A-L2-12V RELAY 8A 12V 2PNC DE2A-L2-12V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 720 Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 25.00mm, width 12.50mm, and height 12.50mm.Manufactured by PANASONIC COMP. and compliant with NON ROHS standards. Packaged as TUBE for convenience.

DE2A-L2-12V RELAY 8A 12V 2PNC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Automation
• Series: DE
• MountingType: THT
• ContactForm: DPST-NO (2 Form A)
• CoilType: Latching, Dual Coil
• ContactCurrent(Nom): 8A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 16.60mA
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 720 Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 8 Pin
• Length: 25.00mm
• Width: 12.50mm
• Height: 12.50mm
• Rohs: NON ROHS
• Packaging: TUBE

---

You can click for product datasheet.
