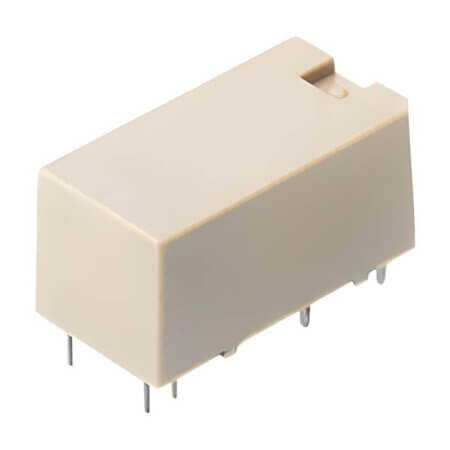

DE1A1B-5V RELAY POWER 8A 250VAC 5V

DE1A1B-5V RELAY POWER 8A 250VAC 5V Description

DE1A1B-5V RELAY POWER 8A 250VAC 5V DE1A1B-5V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 125 Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 25.00mm, width 12.50mm, and height 12.50mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TUBE for convenience.

DE1A1B-5V RELAY POWER 8A 250VAC 5V Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power
• Series: DE
• MountingType: THT
• ContactForm: DPST-NO/NC (1 Form A/1 Form B)
• CoilType: Non Latching
• ContactCurrent(Nom): 8A
• ContactCurrent(Max):
• CoilVoltage: 5VDC
• CoilCurrent: 40mA
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 125 Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 6 Pin
• Length: 25.00mm
• Width: 12.50mm
• Height: 12.50mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
