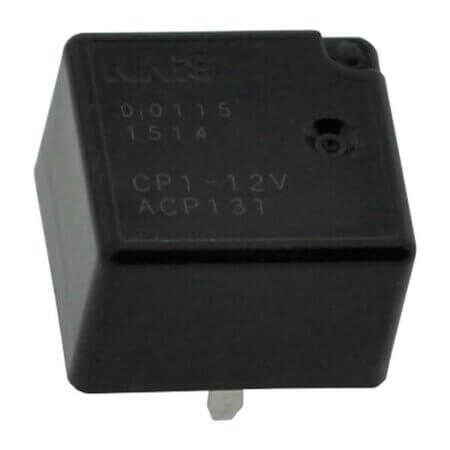

CP1-12V RELAY AUTOMOTIVE ULTRAMINI 20A 12V 1FORM C PANASON

CP1-12V RELAY AUTOMOTIVE ULTRAMINI 20A 12V 1FORM C PANASON Description

CP1-12V RELAY AUTOMOTIVE ULTRAMINI 20A 12V 1FORM C PANASON CP1-12V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 14VDC and coil resistance of 225 Ohms. Features a coil power of 640mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 14.00mm, width 13.00mm, and height 9.50mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TUBE for convenience.

CP1-12V RELAY AUTOMOTIVE ULTRAMINI 20A 12V 1FORM C PANASON Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Automotive
• Series: CP
• MountingType: Socket
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 20A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 53.30mA
• ContactVoltage: 14VDC
• CoilResistance: 225 Ohms
• CoilPower: 640mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 5 Pin
• Length: 14.00mm
• Width: 13.00mm
• Height: 9.50mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
