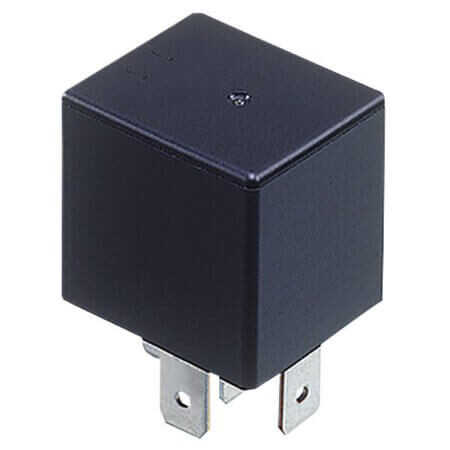

CB1F-24V RELAY AUTOMOTIVE 20A 24VDC 1PNC FLUX-RES PANASONIC

CB1F-24V RELAY AUTOMOTIVE 20A 24VDC 1PNC FLUX-RES PANASONIC Description

CB1F-24V RELAY AUTOMOTIVE 20A 24VDC 1PNC FLUX-RES PANASONIC CB1F-24V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 28VDC and coil resistance of 320 Ohms. Features a coil power of 1.80W and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 26.00mm, width 22.00mm, and height 25.00mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

CB1F-24V RELAY AUTOMOTIVE 20A 24VDC 1PNC FLUX-RES PANASONIC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Automotive
• Series: CB
• MountingType: Socket
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 20A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 75mA
• ContactVoltage: 28VDC
• CoilResistance: 320 Ohms
• CoilPower: 1.80W
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 5 Pin
• Length: 26.00mm
• Width: 22.00mm
• Height: 25.00mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
