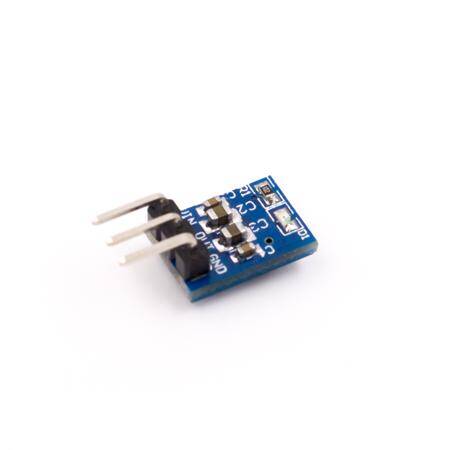

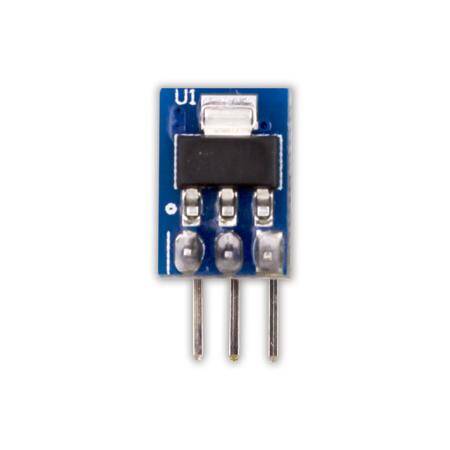

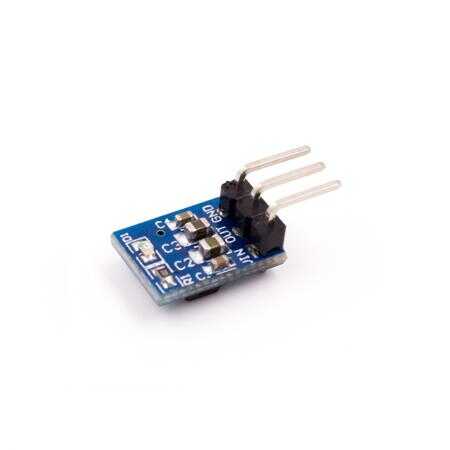

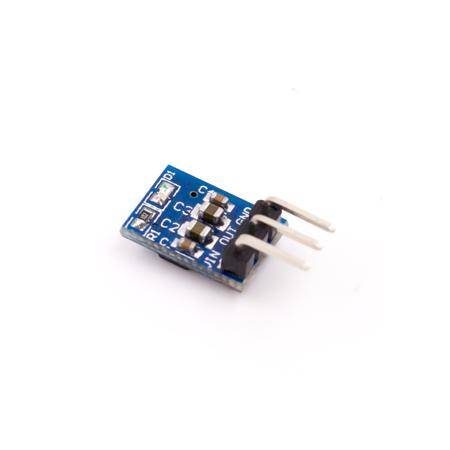

AMS1117-3.3 LDO 800mA DC 5V to 3.3V Step-Down Power Supply Module

AMS1117-3.3 Power Supply Module Description

The AMS1117-3.3 LDO Step-Down Power Supply Module is a compact and efficient voltage regulator designed to convert a 5V DC input into a stable 3.3V output. With a current capacity of up to 800mA, this module is ideal for powering low-voltage devices such as sensors, microcontrollers, and IoT components. Its low dropout design ensures high efficiency and consistent performance in a wide range of applications.

AMS1117-3.3 Power Supply Module Features

• Stable Output Voltage: Converts 5V DC to a reliable 3.3V output.
• High Current Capacity: Supports loads up to 800mA.
• Low Dropout Design: Ensures efficient voltage regulation.
• Compact Size: Small form factor for easy integration into tight spaces.
• Wide Compatibility: Ideal for powering sensors, microcontrollers, and wireless modules.
• Overheating Protection: Includes thermal shutdown for safety.

AMS1117-3.3 Power Supply Module Specifications

• Input Voltage: 4.5V - 7V DC
• Output Voltage: 3.3V DC
• Current Capacity: Up to 800mA
• Dropout Voltage: 1.1V (maximum)
• Module Dimensions: Compact and lightweight
• Operating Temperature: -40°C to +125°C

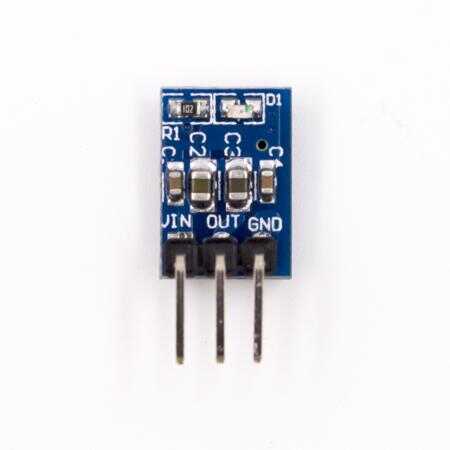

• Pin Configuration: Input, Ground, Output

AMS1117-3.3 Power Supply Module Applications

• Microcontroller Power Supply: Provides stable 3.3V for Arduino, ESP8266, and similar boards.
• IoT Devices: Powers sensors and wireless communication modules in IoT setups.
• Prototyping: Ideal for breadboard projects and low-voltage development.
• Embedded Systems: Ensures consistent power for embedded circuits and components.
• Educational Projects: Suitable for electronics learning and experimentation.
