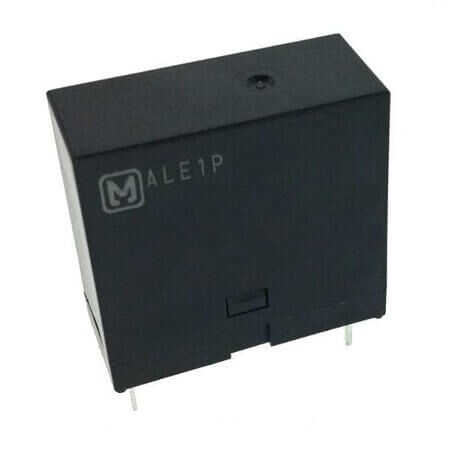

ALE1PB24 RELAY POWER 16A 24VDC 1P PANASONIC

ALE1PB24 RELAY POWER 16A 24VDC 1P PANASONIC Description

ALE1PB24 RELAY POWER 16A 24VDC 1P PANASONIC ALE1PB24 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC and coil resistance of 1.44K Ohms. Features a coil power of 400mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 28.60mm, width 12.40mm, and height 24.90mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

ALE1PB24 RELAY POWER 16A 24VDC 1P PANASONIC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power
• Series: ALE
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 16A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 16.70mA
• ContactVoltage: 277VAC
• CoilResistance: 1.44K Ohms
• CoilPower: 400mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 4 Pin
• Length: 28.60mm
• Width: 12.40mm
• Height: 24.90mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
