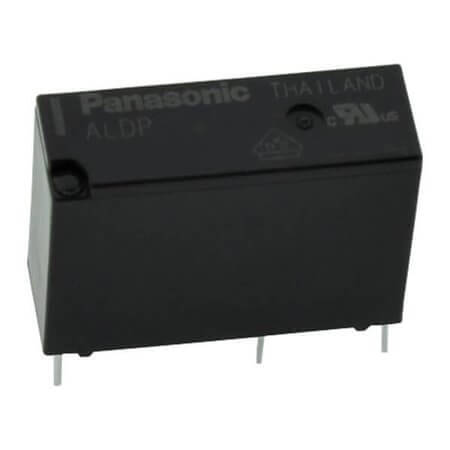

ALDP106W RELAY 5A 6V PANASONIC

ALDP106W RELAY 5A 6V PANASONIC Description

ALDP106W RELAY 5A 6V PANASONIC ALDP106W is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC/30VDC and coil resistance of 180 Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 20.50mm, width 7.20mm, and height 15.30mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

ALDP106W RELAY 5A 6V PANASONIC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power Slim
• Series: ALDP
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 5A
• ContactCurrent(Max):
• CoilVoltage: 6VDC
• CoilCurrent: 33.30mA
• ContactVoltage: 277VAC/30VDC
• CoilResistance: 180 Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 4 Pin
• Length: 20.50mm
• Width: 7.20mm
• Height: 15.30mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
