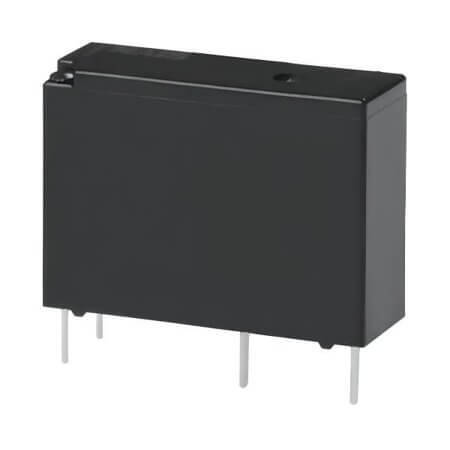

ALD112 RELAY 3A 12V 1a PANASONIC

ALD112 RELAY 3A 12V 1a PANASONIC Description

ALD112 RELAY 3A 12V 1a PANASONIC ALD112 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC/30VDC and coil resistance of 720 Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 20.50mm, width 7.20mm, and height 15.30mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TUBE for convenience.

ALD112 RELAY 3A 12V 1a PANASONIC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power Slim
• Series: ALD
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 3A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 16.70mA
• ContactVoltage: 277VAC/30VDC
• CoilResistance: 720 Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 4 Pin
• Length: 20.50mm
• Width: 7.20mm
• Height: 15.30mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
