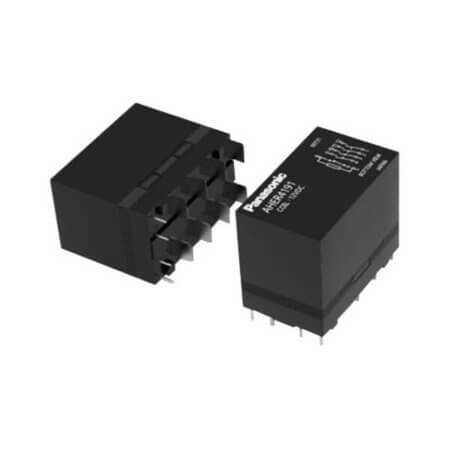

AHER4191 RELAY POWER 40A 12VDC 1FORMA

AHER4191 RELAY POWER 40A 12VDC 1FORMA Description

AHER4191 RELAY POWER 40A 12VDC 1FORMA AHER4191 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 480VAC - Max and coil resistance of 36 Ohms. Features a coil power of 490mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 58.00mm, width 35.00mm, and height 47.00mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

AHER4191 RELAY POWER 40A 12VDC 1FORMA Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power
• Series: AHER
• MountingType: THT
• ContactForm: 5PST-NO/NC (4 Form A/1 Form B)
• CoilType: Non Latching
• ContactCurrent(Nom): 40A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 333mA
• ContactVoltage: 480VAC - Max
• CoilResistance: 36 Ohms
• CoilPower: 490mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 12 Pin
• Length: 58.00mm
• Width: 35.00mm
• Height: 47.00mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
