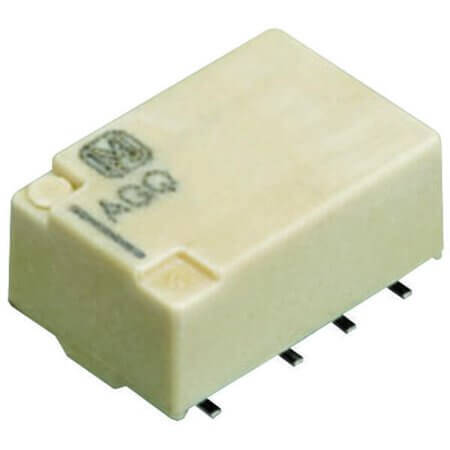

AGQ200S24 RELAY TELECOM DPDT 2A 24V

AGQ200S24 RELAY TELECOM DPDT 2A 24V Description

AGQ200S24 RELAY TELECOM DPDT 2A 24V AGQ200S24 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 125VAC/110VDC - Max and coil resistance of 2.50K Ohms. Features a coil power of 230mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 10.60mm, width 7.20mm, and height 5.40mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TUBE for convenience.

AGQ200S24 RELAY TELECOM DPDT 2A 24V Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Telecom
• Series: AGQ
• MountingType: SMT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 2A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 9.60mA
• ContactVoltage: 125VAC/110VDC - Max
• CoilResistance: 2.50K Ohms
• CoilPower: 230mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 8 Pin
• Length: 10.60mm
• Width: 7.20mm
• Height: 5.40mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
