AGN2004H RELAY 31mA 4.5VDC PANASONIC

AGN2004H RELAY 31mA 4.5VDC PANASONIC Description

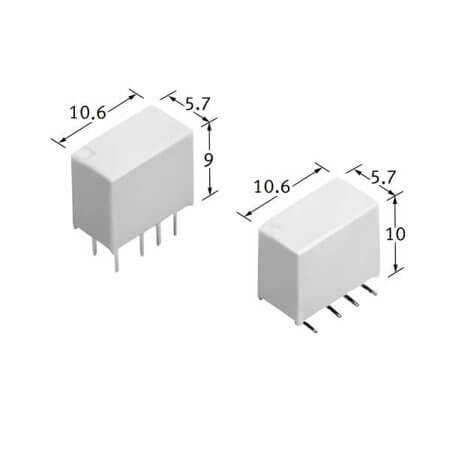

AGN2004H RELAY 31mA 4.5VDC PANASONIC AGN2004H is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 125VAC/110VDC - Max and coil resistance of 145 Ohms. Features a coil power of 140mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 10.60mm, width 5.70mm, and height 9.00mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TUBE for convenience.

AGN2004H RELAY 31mA 4.5VDC PANASONIC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Telecom
• Series: AGN
• MountingType: THT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 1A
• ContactCurrent(Max):
• CoilVoltage: 4.50VDC
• CoilCurrent: 31mA
• ContactVoltage: 125VAC/110VDC - Max
• CoilResistance: 145 Ohms
• CoilPower: 140mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 8 Pin
• Length: 10.60mm
• Width: 5.70mm
• Height: 9.00mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
