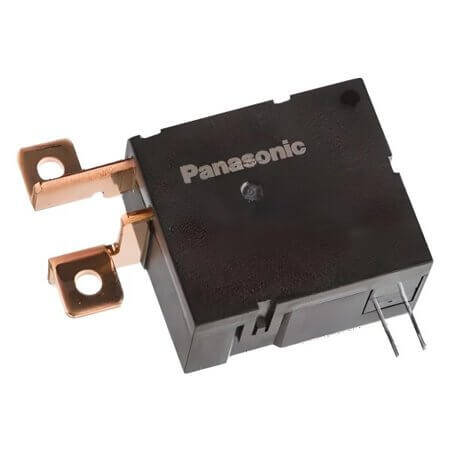

ADZ22105H RELAY 120A 5V LATCH H PANASONIC

ADZ22105H RELAY 120A 5V LATCH H PANASONIC Description

ADZ22105H RELAY 120A 5V LATCH H PANASONIC ADZ22105H is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC and coil resistance of 8.90 Ohms. Features a coil power of 2.80W and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 35.00mm, width 22.00mm, and height 41.00mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

ADZ22105H RELAY 120A 5V LATCH H PANASONIC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power Latching
• Series: ADZ
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Latching, Dual Coil
• ContactCurrent(Nom): 100A
• ContactCurrent(Max): 120A
• CoilVoltage: 5VDC
• CoilCurrent: 560mA
• ContactVoltage: 250VAC
• CoilResistance: 8.90 Ohms
• CoilPower: 2.80W
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 3 Pin
• Length: 35.00mm
• Width: 22.00mm
• Height: 41.00mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
