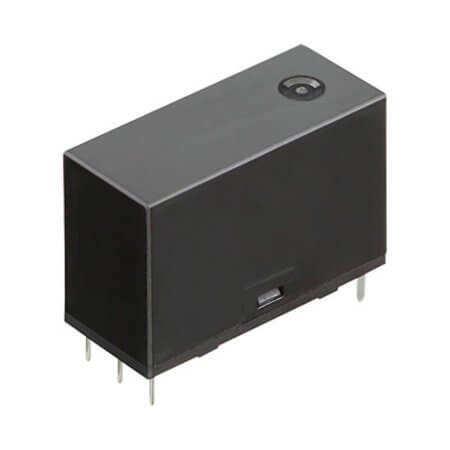

ADW1212HT RELAY 16A 12VDC PANASONIC DW INRUSH 2COIL LATCH

ADW1212HT RELAY 16A 12VDC PANASONIC DW INRUSH 2COIL LATCH Description

ADW1212HT RELAY 16A 12VDC PANASONIC DW INRUSH 2COIL LATCH ADW1212HT is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC and coil resistance of 360 Ohms. Features a coil power of 400mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 24.00mm, width 10.00mm, and height 18.80mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TUBE for convenience.

ADW1212HT RELAY 16A 12VDC PANASONIC DW INRUSH 2COIL LATCH Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power Latching
• Series: ADW1
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Latching, Dual Coil
• ContactCurrent(Nom): 8A
• ContactCurrent(Max): 16A
• CoilVoltage: 12VDC
• CoilCurrent: 33.30mA
• ContactVoltage: 277VAC
• CoilResistance: 360 Ohms
• CoilPower: 400mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 5 Pin
• Length: 24.00mm
• Width: 10.00mm
• Height: 18.80mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
