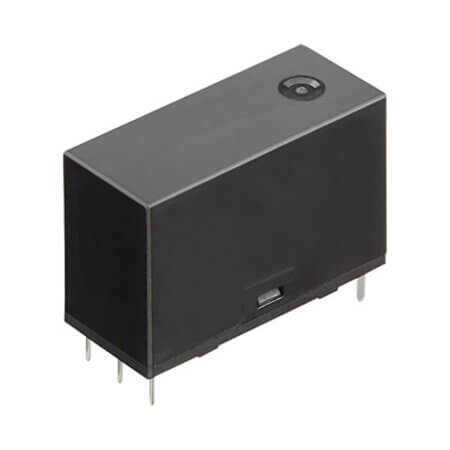

ADW1124HTW RELAY 16A 24VDC 1P INRUSH PANASONIC

ADW1124HTW RELAY 16A 24VDC 1P INRUSH PANASONIC Description

ADW1124HTW RELAY 16A 24VDC 1P INRUSH PANASONIC ADW1124HTW is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC and coil resistance of 2.88K Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 24.00mm, width 10.00mm, and height 18.80mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

ADW1124HTW RELAY 16A 24VDC 1P INRUSH PANASONIC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power Latching
• Series: ADW1
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Latching, Single Coil
• ContactCurrent(Nom): 8A
• ContactCurrent(Max): 16A
• CoilVoltage: 24VDC
• CoilCurrent: 8.30mA
• ContactVoltage: 277VAC
• CoilResistance: 2.88K Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 4 Pin
• Length: 24.00mm
• Width: 10.00mm
• Height: 18.80mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
