ADJ24012 RELAY 16A 12V 1P PANASONIC

ADJ24012 RELAY 16A 12V 1P PANASONIC Description

ADJ24012 RELAY 16A 12V 1P PANASONIC ADJ24012 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC and coil resistance of 576 Ohms. Features a coil power of 250mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 29.00mm, width 13.00mm, and height 16.00mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

ADJ24012 RELAY 16A 12V 1P PANASONIC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power Polarized
• Series: ADJ
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Latching, Dual Coil
• ContactCurrent(Nom): 10A
• ContactCurrent(Max): 16A
• CoilVoltage: 12VDC
• CoilCurrent: 20.80mA
• ContactVoltage: 250VAC
• CoilResistance: 576 Ohms
• CoilPower: 250mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 5 Pin

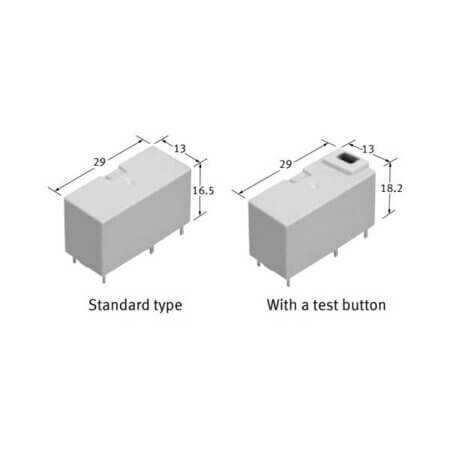

• Length: 29.00mm
• Width: 13.00mm
• Height: 16.00mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
