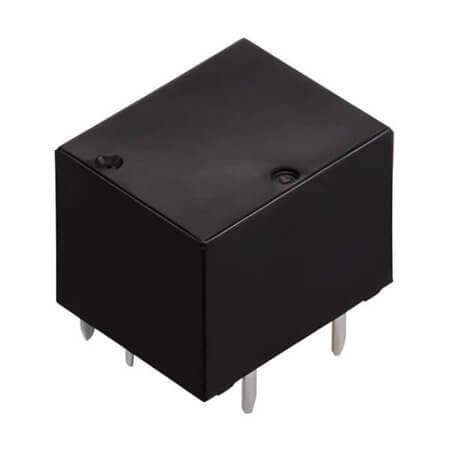

ACTB5C2 RELAY AUTOMOTIVE 25A 12VDC 1FormCx2

ACTB5C2 RELAY AUTOMOTIVE 25A 12VDC 1FormCx2 Description

ACTB5C2 RELAY AUTOMOTIVE 25A 12VDC 1FormCx2 ACTB5C2 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 14VDC and coil resistance of 160 Ohms. Features a coil power of 900mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 17.40mm, width 14.00mm, and height 14.00mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TUBE for convenience.

ACTB5C2 RELAY AUTOMOTIVE 25A 12VDC 1FormCx2 Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Automotive
• Series: ACTB
• MountingType: THT
• ContactForm: SPDT (1 Form Cx2)
• CoilType: Non Latching
• ContactCurrent(Nom): 10A
• ContactCurrent(Max): 20A
• CoilVoltage: 12VDC
• CoilCurrent: 75mA
• ContactVoltage: 14VDC
• CoilResistance: 160 Ohms
• CoilPower: 900mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 10 Pin
• Length: 17.40mm
• Width: 14.00mm
• Height: 14.00mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
