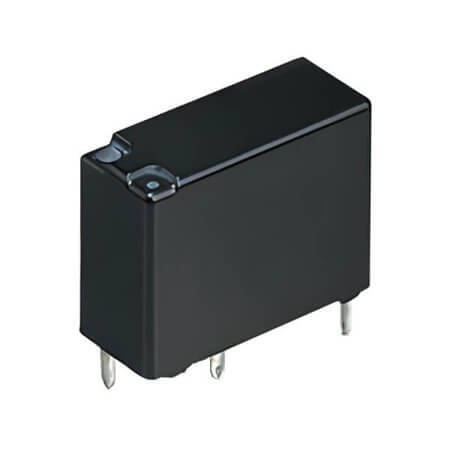

ACT112 RELAY AUTOMOTIVE 20A 12V SPDT 1FormC

ACT112 RELAY AUTOMOTIVE 20A 12V SPDT 1FormC Description

ACT112 RELAY AUTOMOTIVE 20A 12V SPDT 1FormC ACT112 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 14VDC and coil resistance of 180 Ohms. Features a coil power of 800mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 17.40mm, width 7.20mm, and height 13.50mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TUBE for convenience.

ACT112 RELAY AUTOMOTIVE 20A 12V SPDT 1FormC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Automotive
• Series: ACT
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 10A
• ContactCurrent(Max): 20A
• CoilVoltage: 12VDC
• CoilCurrent: 66.70mA
• ContactVoltage: 14VDC
• CoilResistance: 180 Ohms
• CoilPower: 800mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 5 Pin
• Length: 17.40mm
• Width: 7.20mm
• Height: 13.50mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
