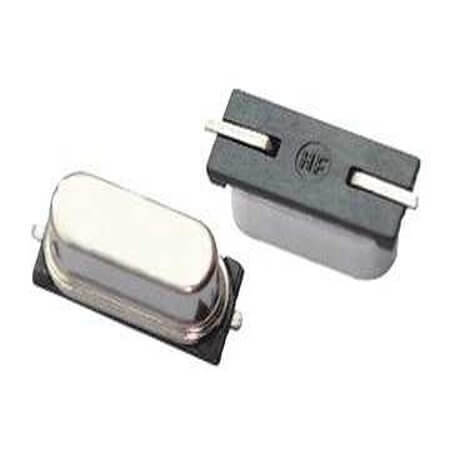

ABLS-7.3728MHZ-B2-T CRYSTAL 7.3728MHZ HC49SMT 18pF SMD TR

ABLS-7.3728MHZ-B2-T CRYSTAL 7.3728MHZ HC49SMT 18pF SMD TR Description

ABLS-7.3728MHZ-B2-T CRYSTAL 7.3728MHZ HC49SMT 18pF SMD TR ABLS-7.3728MHZ-B2-T is a high-performance crystal component that operates at a frequency of 7.3728MHz with a frequency stability of ±50PPM.Features equivalent series resistance (ESR) of 100 Ohms. Compact dimensions: length 11.40mm, width 4.70mm, and height 4.20mm. Supports a temperature range of -20°C~+70°C for reliable performance. Manufactured by ABRACON with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

ABLS-7.3728MHZ-B2-T CRYSTAL 7.3728MHZ HC49SMT 18pF SMD TR Technical Specifications

• Manufacturer: ABRACON
• MountingType: SMT
• Series: ABLS
• Package/Case: HC-49/US
• Frequency: 7.3728MHz
• Capacitance: 18pF
• FrequencyTolerance: ±20PPM
• FrequencyStability: ±50PPM
• EquivalentSeriesResistance(ESR): 100 Ohms
• Applications:
• Diameter:
• Length: 11.40mm
• Width: 4.70mm
• Height: 4.20mm
• OperatingTemperature: -20°C~+70°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
