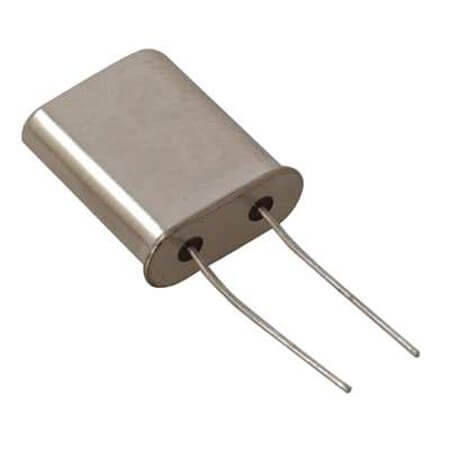

A-16.000-18 CRYSTAL 16MHZ HC49U 18pF RALTRON

A-16.000-18 CRYSTAL 16MHZ HC49U 18pF RALTRON Description

A-16.000-18 CRYSTAL 16MHZ HC49U 18pF RALTRON A-16.000-18 is a high-performance crystal component that operates at a frequency of 16MHz with a frequency stability of ±50PPM.Features equivalent series resistance (ESR) of 25 Ohms. Compact dimensions: length 11.00mm, width 4.70mm, and height 13.50mm. Supports a temperature range of -20°C~+70°C for reliable performance. Manufactured by RALTRON with compliance to ROHS standards. Packaged as BULK for convenience.

A-16.000-18 CRYSTAL 16MHZ HC49U 18pF RALTRON Technical Specifications

• Manufacturer: RALTRON
• MountingType: THT
• Series: A
• Package/Case: HC-49U
• Frequency: 16MHz
• Capacitance: 18pF
• FrequencyTolerance: ±30PPM
• FrequencyStability: ±50PPM
• EquivalentSeriesResistance(ESR): 25 Ohms
• Applications:
• Diameter:
• Length: 11.00mm
• Width: 4.70mm
• Height: 13.50mm
• OperatingTemperature: -20°C~+70°C
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
