28.63636MHZ MT/30/30/-40 CRYSTAL 28MHz 18pF EUROQUARTZ

28.63636MHZ MT/30/30/-40 CRYSTAL 28MHz 18pF EUROQUARTZ Description

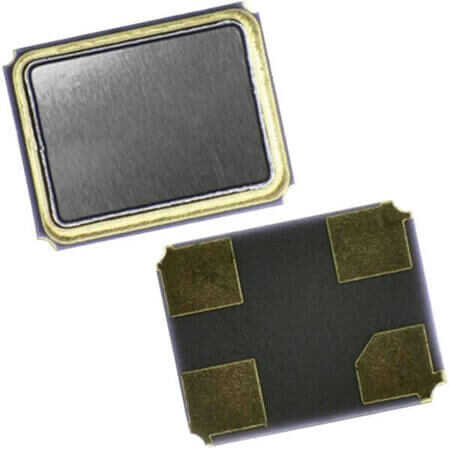

28.63636MHZ MT/30/30/-40 CRYSTAL 28MHz 18pF EUROQUARTZ 28.63636MHZ MT/30/30/-40 is a high-performance crystal component that operates at a frequency of 28.63636MHz with a frequency stability of ±30PPM.Features equivalent series resistance (ESR) of nan. Compact dimensions: length 3.20mm, width 2.50mm, and height 0.70mm. Supports a temperature range of -40°C~+85°C for reliable performance. Manufactured by EUROQUARTZ with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

28.63636MHZ MT/30/30/-40 CRYSTAL 28MHz 18pF EUROQUARTZ Technical Specifications

• Manufacturer: EUROQUARTZ
• MountingType: SMT
• Series: MT
• Package/Case: 4-SMD
• Frequency: 28.63636MHz
• Capacitance: 18pF
• FrequencyTolerance: ±30PPM
• FrequencyStability: ±30PPM
• EquivalentSeriesResistance(ESR):
• Applications:
• Diameter:
• Length: 3.20mm
• Width: 2.50mm
• Height: 0.70mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
