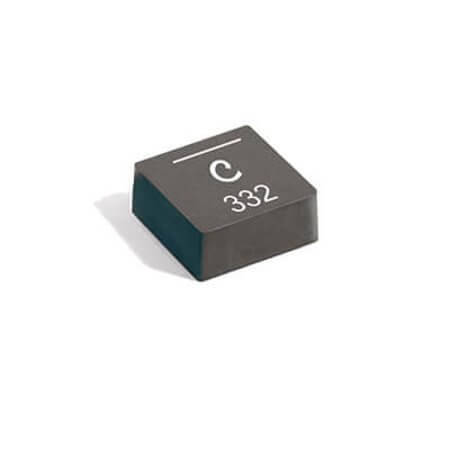

XAL1510-682MED INDUCTOR FIXED 6.8uH 20% 26A 4.6mOhms AECQ2

XAL1510-682MED INDUCTOR FIXED 6.8uH 20% 26A 4.6mOhms AECQ2 Description

XAL1510-682MED INDUCTOR FIXED 6.8uH 20% 26A 4.6mOhms AECQ2 The XAL1510-682MED is an advanced fixed inductor tailored for high-performance applications. With its INDUCTOR FIXED 6.8uH 20% 26A 4.6mOhms AECQ2, this component ensures reliable and efficient power management. Manufactured by COILCRAFT, it features compact dimensions of 16.20mm x 15.20mm x 10.00mm, making it ideal for space-constrained designs. Its ability to operate within -40°C ~ +125°C demonstrates its durability and versatility. Compliant with ROHS standards, the XAL1510-682MED reflects a commitment to eco-friendly practices. Packaged as TAPE&REEL, it is the perfect choice for engineers seeking precision, performance, and reliability in their circuits.

XAL1510-682MED INDUCTOR FIXED 6.8uH 20% 26A 4.6mOhms AECQ2 Technical Specifications

• Manufacturer: COILCRAFT
• Series: XAL
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology: Power
• Shielding: Shielded
• Inductance: 6.8uH
• CurrentRating: 26A
• Current-Saturation(Isat):
• Tolerance: ±20%
• DCResistance(DCR): 4.17m Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 16.20mm
• Width: 15.20mm
• Height: 10.00mm
• OperationTemperature: -40°C ~ +125°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
